BrandFX Body
Fiberglass Composite Service Bodies
Service bodies for Plumbing, HVAC Mechanical, Electrical, Utility, Telecommunications, Pest Control, Oil and Gas, Mechanics fleet trucks and more.

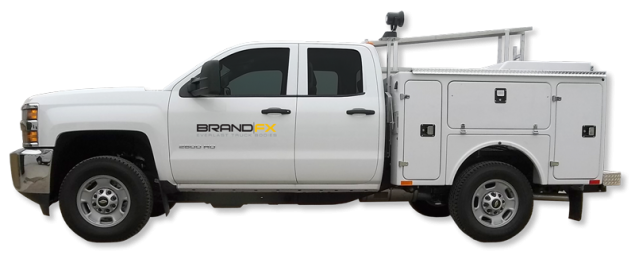

40LS Service Body
For short-bed truck chassis with a 40″ Cab to Axle.
Pack Height: 42”
Pack Depth: 15”
Pack Length: 81 5/8”
Floor Width: 48-3/4”
Overall Width: 82-3/4”
Mounting Height: 25”
Weight: 516 lbs

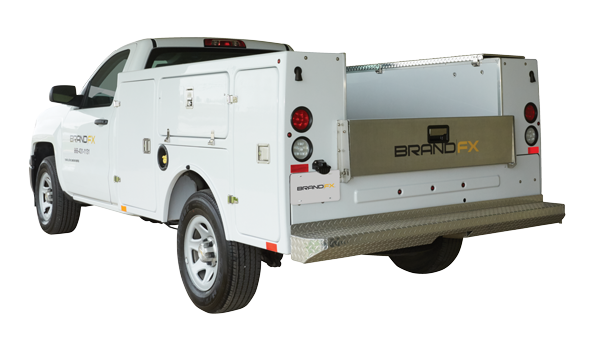

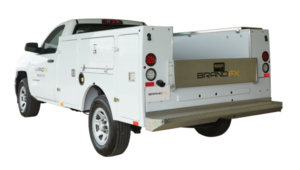

56LS Service Body
Service body ideal for truck chassis with a 56″ cab to axle. Single and Dual Rear Wheel
Pack Height: 42”
Pack Depth: 15”
Pack Length: 96”
Floor Width: 48-3/4”
Overall Width: 82-3/4”
Mounting Height: 25”
Weight: 626 lbs

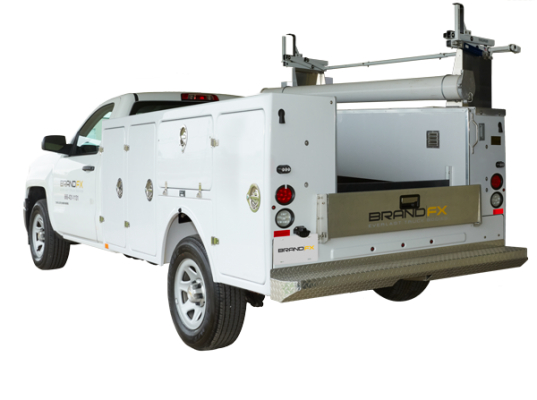

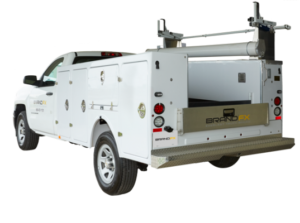

60LS Service Body
Service body ideal for truck chassis with a 60″ cab to axle. Single and Dual Rear wheel
Pack Height: 42”
Pack Depth: 15”
Pack Length: 108”
Floor Width: 48-3/4”
Overall Width: 82-3/4”
Mounting Height: 25”
Weight: 712 lbs
84DLS Service Body
This service body is ideal for dual rear wheel truck chassis with an 84” cab to axle.
Pack Height: 42”
Pack Depth: 20”
Pack Length: 132”
Floor Width: 54”
Overall Width: 94”
Mounting Height: 25”
Weight: 889 lbs
Standard Features Included in Base
- Vinyl Rock Guards
- Black Plastic Gas Fill Cup
- Removable Wheel Well Panels
- Automotive Grade White Gelcoat Finish
- White Compartment Interiors
- Recessed LED Exterior Lighting Package
- Flow Through Ventilation System
- Light Adaptor for Specified Chassis***
- Non-Skid Compartment Tops
- Vinyl Coasted Cable Door Stops
- 10” Aluminum Automotive Style Tailgate
- Treadbright Aluminum Bumper w/ Cutout for OEM Receiver
- Treadbright Aluminum Floor
- Aluminum Understructure
- Aluminum Tail Skirt
- Steel Rear Mounting Brackets
- Stainless Steel Hinges & Hardware
- Stainless Steel, Automotive Style Dual Rotary Latch
- One Piece Molded Doors, Automotive Finish Both Sides
- Recessed Door Seal System
- Automotive Grade Door Gasket

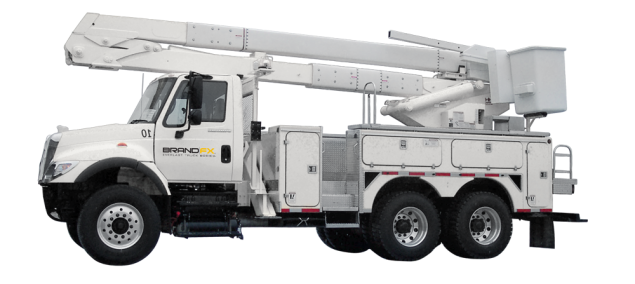

Fiberglass Composite Line Bodies
Line Bodies combine strength, performance and ample storage space, all packaged together in a lightweight composite body that weights up to 60% less than conventional steel bodies.

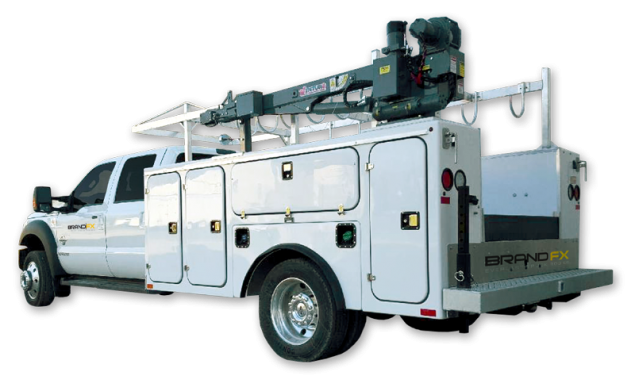

84T Line Body
Designed for truck chassis with an 84″ CA, the 84T is standard with 8 compartments—three vertical and one horizontal per side.
Dual Rear Wheel 84” CA
8 Total Storage Compartments
3 Vertical Compartments & 1 Horizontal Compartment Per Side
48.5” Standard Overall Height
Side-Pack Depth Options from 18” – 20”

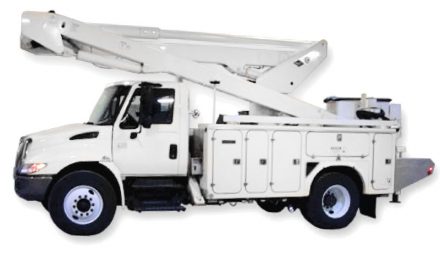

102T Service Body
Designed for truck chassis with a 102″ CA, the 102T comes standard with 10 compartments—four vertical and one horizontal per side.
Dual Rear Wheel 102” CA
10 Total Storage Compartments
4 Vertical Compartments & 1 Horizontal Compartment Per Side
48.5” Standard Overall Height
108T Service Body
Designed for truck chassis with a 108″ CA, the 108T comes standard with 10 compartments—four vertical and one horizontal per side.
Dual Rear Wheel 108” CA
10 Total Storage Compartments
4 Vertical Compartments & 1 Horizontal Compartment Per Side
48.5” Standard Overall Height
Side-Pack Depth Options from 18” – 20”
Standard Features Included in Base
- Vinyl Rock Guards
- Removable Wheel Well Panels
- Automotive Grade White Gelcoat Finish
- White Compartment Interiors
- Recessed LED Exterior Lighting Package
- Flow Through Ventilation System
- Non-Skid Compartment Tops
- Vinyl Coated Cable Door Stops
- Automotive Grade Door Gasket
- Steel Tread Plate Floor
- Steel Understructure
- Aluminum Bulkhead
- Aluminum Rear Flat
- Stainless Steel Hinges & Hardware
- Stainless Steel, Automotive Style Dual Rotary Latch
- One Piece Molded Doors, Automotive Finish Both Sides
- Recessed Door Seal System
- Wiring Harness
